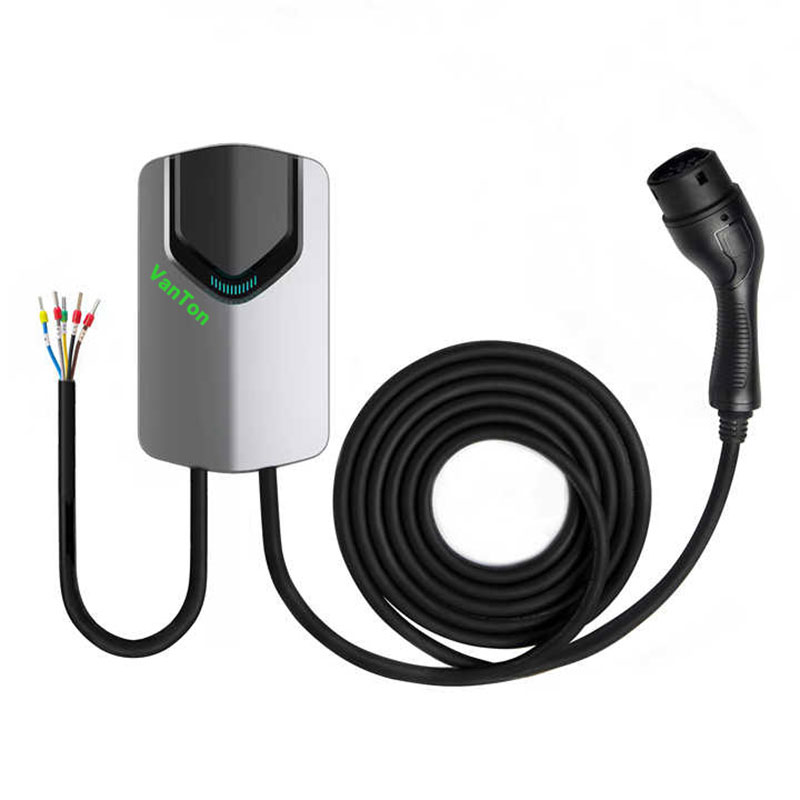

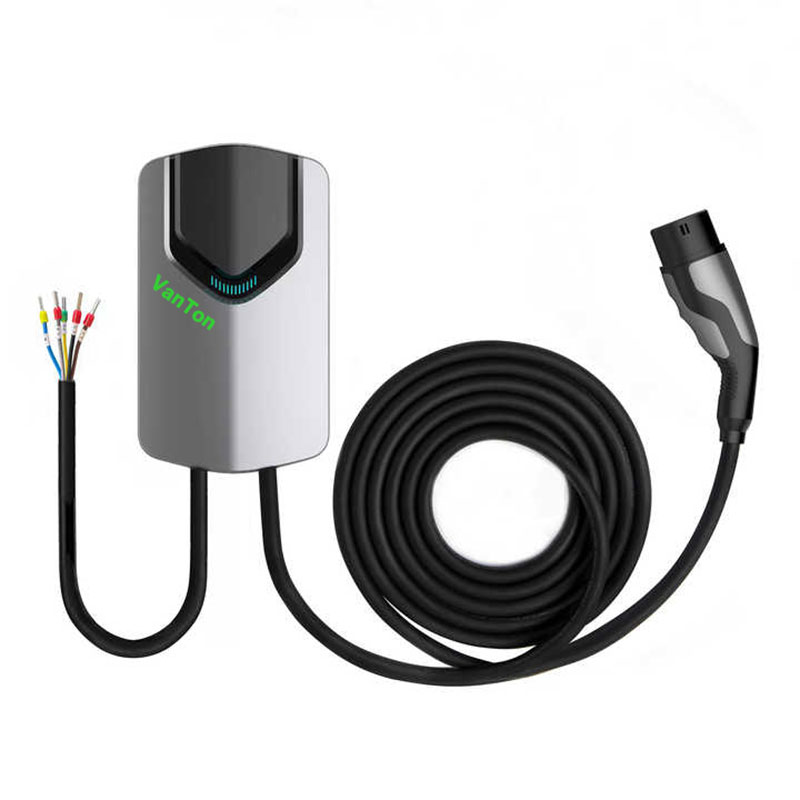

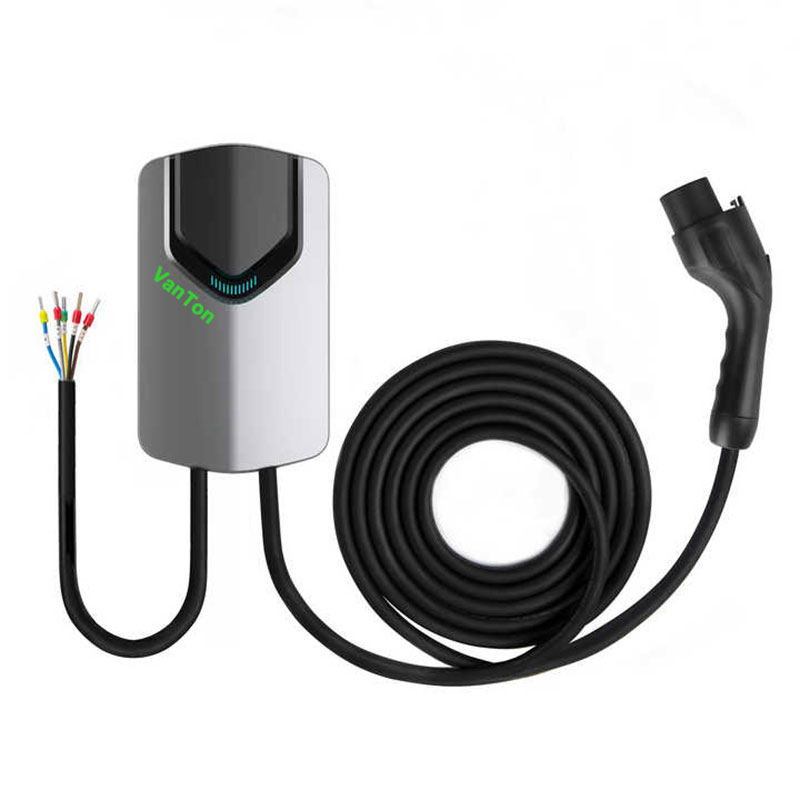

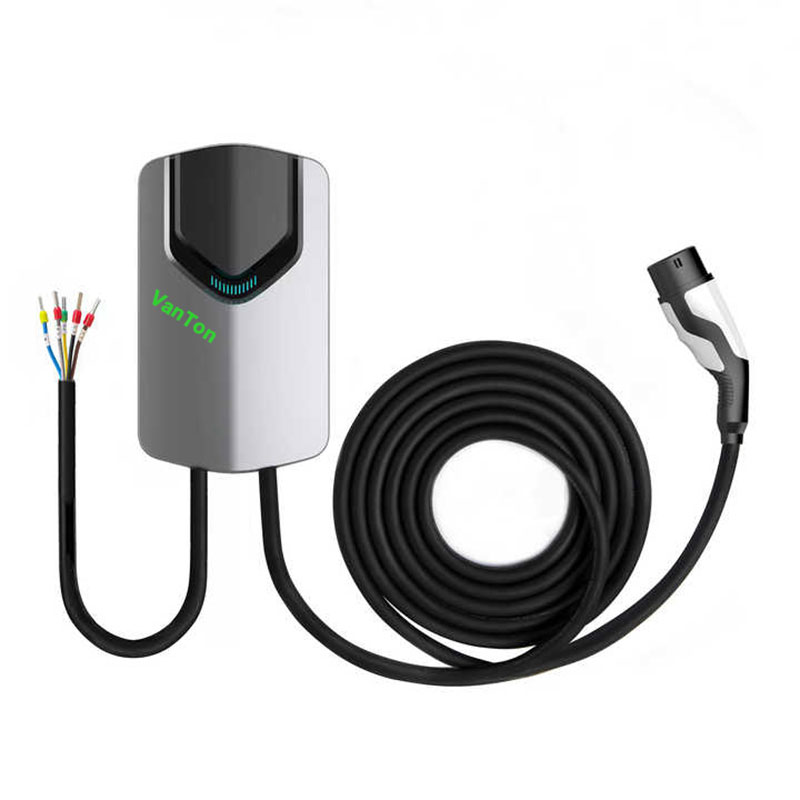

AC wall-mounted charger

AC wall-mounted charger are so important EV charging equipment for home using, they are with lightweight design and variety function to satisfty our gerneral needs, can be used conveniently and widely. Additionally, they are with different power to match kinds of EV, such as 7kW AC wall-mounted charger, 11kW AC wall-mounted charger, and 22kW AC wall-mounted charger. Also kinds interface standards can be supplied for different EV.

VanTon AC wall-mounted chargers are essential home EV charging equipment, designed with compact size, lightweight housing, and advanced protection features. They are suitable for residential garages, parking lots, and small commercial facilities, providing users with a simple, safe, and efficient charging experience.

These chargers are available in multiple power options to suit different vehicle types and charging needs:

7kW AC Wall-Mounted Charger – Ideal for private home use and hybrid EVs.

11kW AC Wall-Mounted Charger – Balanced solution for faster charging.

22kW AC Wall-Mounted Charger – Suitable for full electric vehicles or semi-commercial applications.

Different interface standards can be supplied, including GB/T, Type 1, Type 2, and NACS, making them compatible with almost all mainstream EV brands on the market.

Technical Specifications

Why Choose us?

Meet your daily charging needs. If you are traveling and visiting relatives and friends, you do not need to worry about charging, because you can charge anywhere with a three-pin socket.

The chargers have overcurrent protection, overvoltage protection, under-voltage protection, leakage protection, overheat protection and other protection measures.

Sleek and Compact Design, The latest EV Charger offers a compact design while still including all the best safety technology and components.

the control circuitry protects your car against irregular grids and even lightning strikes, handing insufficient, excessive, and unstable frequency, voltage, and current as well as eliminating any overheating, improper grounding, or earth leakage.

The LED screen offers you complete charging status and lets you monitor power, current, voltage, temperature, and session length in real time; the ergonomic handle offers sure and comfortable grip at all times.

Photos for details

Parameters

Installation Guide

Q1: What are the requirements for home installation?

→ A dedicated circuit is required (a 32A or higher circuit breaker is recommended). A standard three-hole socket (10A) only supports emergency charging. It is recommended that a certified electrician assess the circuit load. We provide a free installation plan.

Q2: Must the charging station be installed indoors?

→ With an IP54 protection rating, it can be installed outdoors (rain and dust resistant). However, for environments with prolonged exposure to direct sunlight, a rain cover is recommended. When installing in a garage, ensure the height from the ground is >30cm (to avoid water accumulation).

Q3: How to correctly select the charging power?

→ The key is the on-board charger (OBC) limit:

For vehicles with a 7kW OBC, select a 7kW charging station (actual charging power ≈ 6.3kW)

For vehicles with an 11kW OBC, select an 11/22kW charging station (under three-phase power conditions). A vehicle power matching table is provided (with data for mainstream models).

FAQ

Q: Can I install an EV charger at home?

A: Yes, you can install an EV charger at home as long as you have a dedicated circuit and a compatible outlet. It's recommended to hire a licensed electrician to install the charger to ensure correct and safety.

Q: Is there any requirement with the location?

B: if can, it will be better that it can installed indoor, such as garage, if can’t, it’s also no problem, IP55 is safety enough for using outside.

Q: How to choose a reliable AC wall-mounted charger ?

C: Firstly, we need to focus on power, which one is the best choice, it should be cosidered as OBC, such as, if max power of OBC is 7kW, then 7kW is the biggest power for AC wall-mounted charger, if you choose 11Kw, it don’t make sense.

Contact us now!

VanTon has been deeply engaged in the new energy vehicle industry for over 13 years, gaining extensive experience in EV charging technology, power electronics, and intelligent energy systems. We always keep pace with market trends, continuously upgrading our R&D and production capabilities to meet the evolving demands of global customers.

VanTon’s AC Wall-Mounted EV Charger combines innovation, safety, and efficiency in one compact unit. Whether for home or semi-commercial use, it ensures a stable and convenient charging experience that meets modern EV users’ expectations.

Contact VanTon today to learn more about our EV charging solutions or to request a customized quotation.
