AC Wall-mounted Charging pile
VanTon supplies CE and UKCA-certified AC wall-mounted Charging pile from reliable Chinese manufacturers. These chargers are resistant to high and low temperatures and feature IP54 protection, ensuring adequate service life and safety.
AC Wall-mounted Charging pile are so important EV charging equipment for home using, they have nice lightweight design and variety function to satisfty our gerneral needs, can be used conveniently and widely. Additionally, they are with different interface standard to match kinds of EV.
Technical Parameters
| Key Specifications | Industry Standard Values | VanTon Performance | User Benefits |
| Charging Efficiency | ≤90% | 94%±0.5% | Annual power savings: ≈300kW·h |
| Low-Temperature Startup | -10℃ | -30℃ | Worry-free use in cold regions |

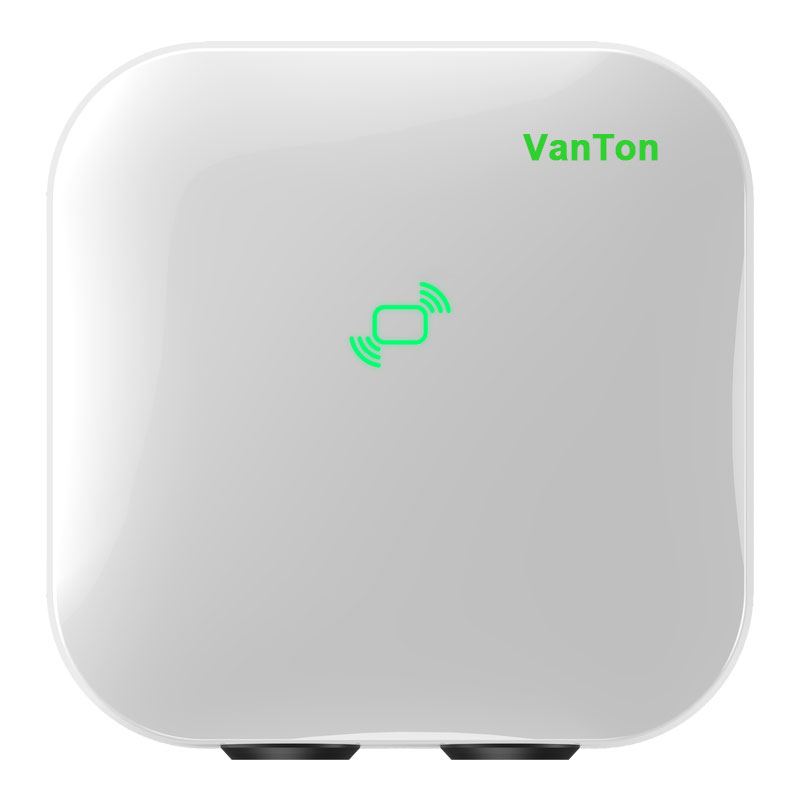

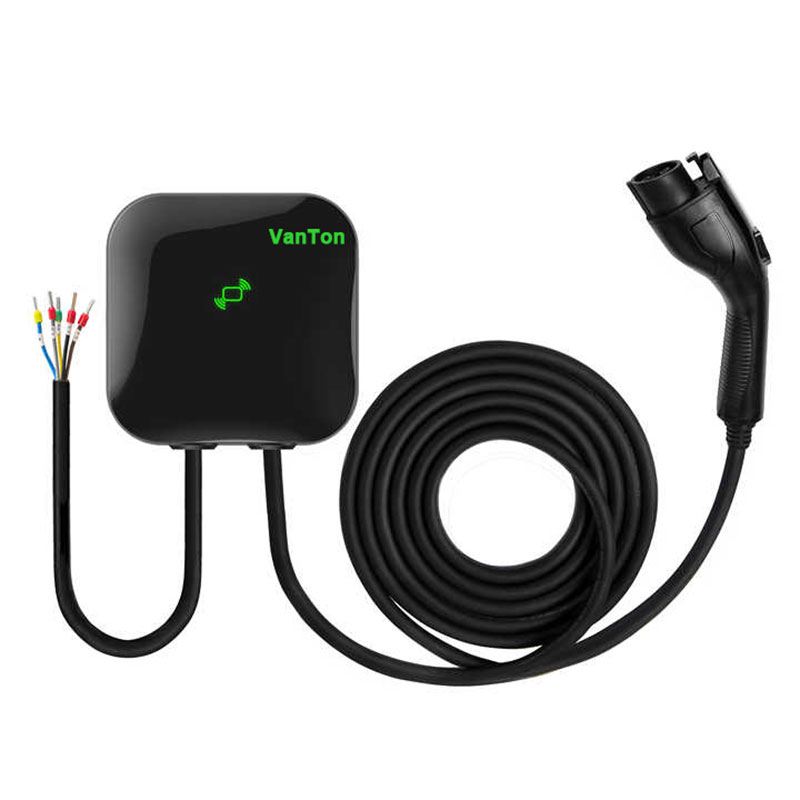

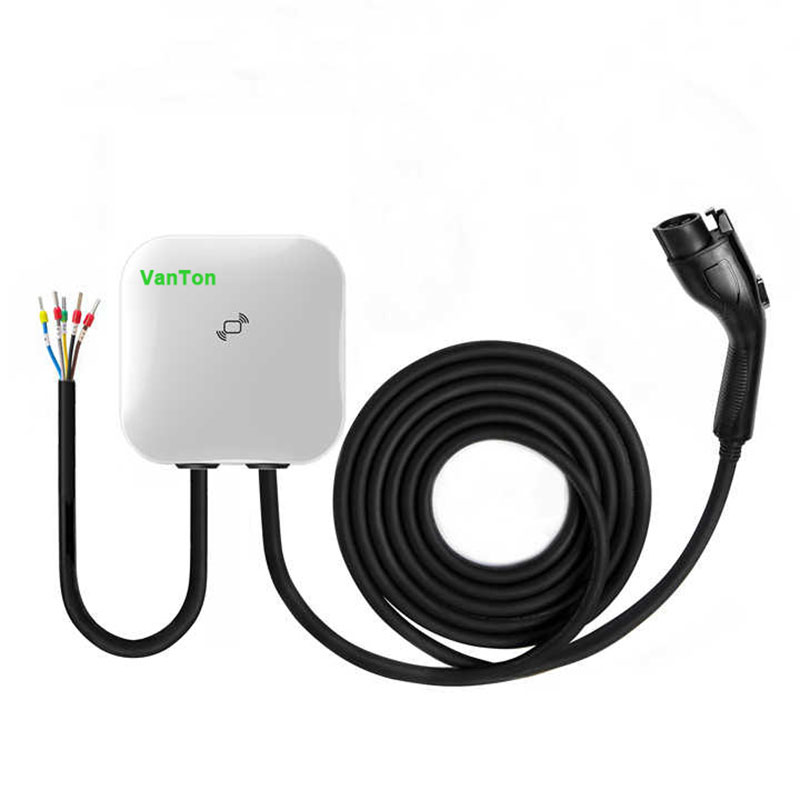

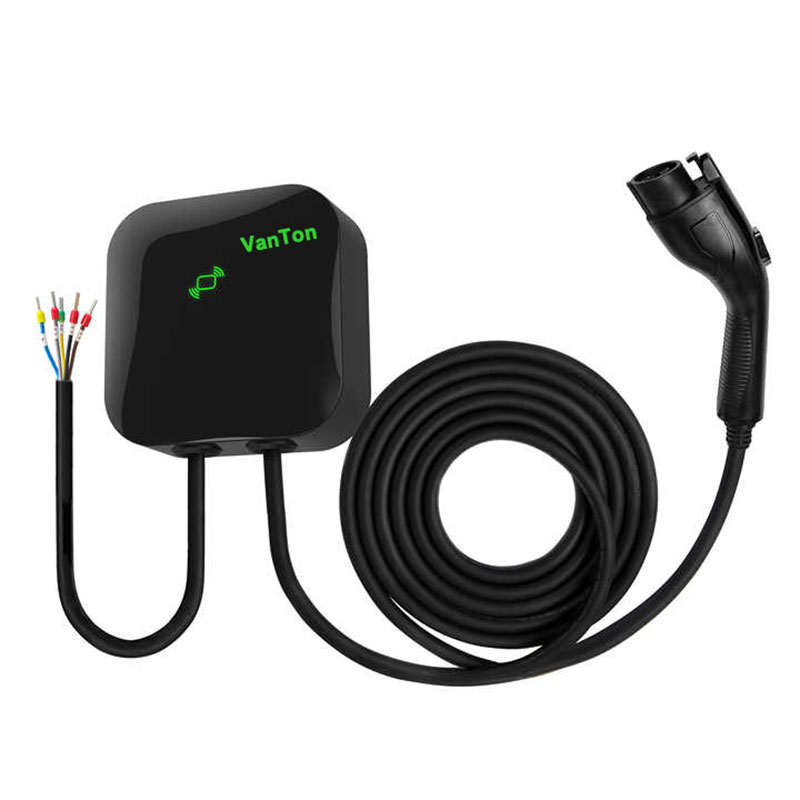

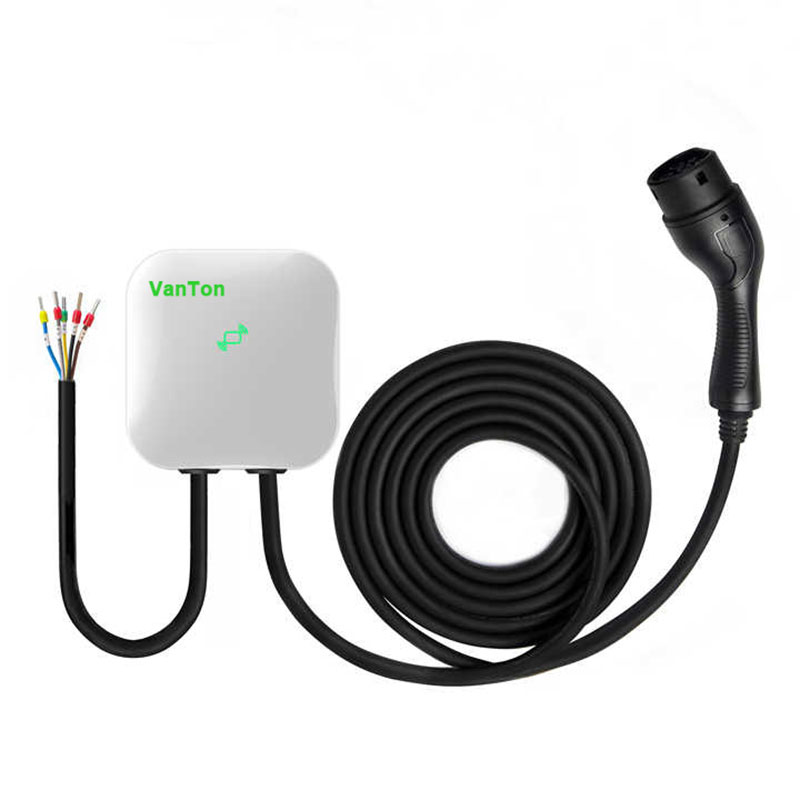

Photos for details
Advantages
2X FASTER than portable basic charger: VanTon AC Wall-mounted Charging pile provide up to 46 m/h* (hardwired 48 amp EV charger level 2)
SAFE, USA CERTIFIED: It is UL compliant, Energy Star, ETL and FCC certified EV car charger level 2 with 2-year Extended Manufacturer Warranty. it is weatherproof, works as an indoor/ outdoor EV charger, and with IP55 protection standards.
COMPATIBLE WITH ALL EVs: It is equipped with heavy duty rubberized SAE J1772 connector compatible with all EVs / PHEVs in NA: all Tesla models, Chevy Bolt, Chevy Volt, VW ID 4, Nissan Leaf, Polestar 2, Ford Mach E, IONIQ 5/6, Kia Nino, EV6, EV9, Mercedes EQS, Audi, Rav4, Jeep Wrangler 4xe level 2 charger (This is J1772 level 2 charger, adapter required for Tesla).
RELIABLE: We stand behind the quality of every VanTon AC Wall-mounted Charging pile we produce. EV chargers undergo rigorous testing before shipping: water, freezing, dust, UV, humidity, aging, heating, vibration, fault detection and drop tests.
Parameters
| Name | AC Wall-mounted Charging pile |
| Interface standard | GB/T(Type2, Type1 and NACS) |
| EV charging cable | TPU jacket (CE EN62196/TUV certified) |
| Output power | Max 7kW |
| Start mode | Card swipe/APP/Plug&play |
| Protection level | IP54 |
| Protection | Leakage current protection, impact resistance, over current protectoin, ground protection, surge protection, O/U voltage protection, O/U frequency protection, Over temp protection. |
| Leakage protection | Type B(RCD 30mA AC+6mA DC) |
| Feature | Indicator light to show work situation(R/G/B) |
FAQ
Q: Can I install an EV charger at home?
A: Yes, you can install an EV charger at home as long as you have a dedicated circuit and a compatible outlet. It's recommended to hire a licensed electrician to install the charger to ensure correct and safety.
Q: Is there any requirement with the location?
B: if can, it will be better that it can installed indoor, such as garage, if can’t, it’s also no problem, IP55 is safety enough for using outside. So you can choose lacation as needed. It’s important to convenient for charging and parking.
Q: How to choose a reliable AC Charging piles ?
C: Firstly, we need to focus on power, which one is the best choice, it should be cosidered as OBC, such as, if max power of OBC is 11kW, then 11kW is the biggest power for AC Charging piles, if you choose 22Kw, it don’t make sense.
