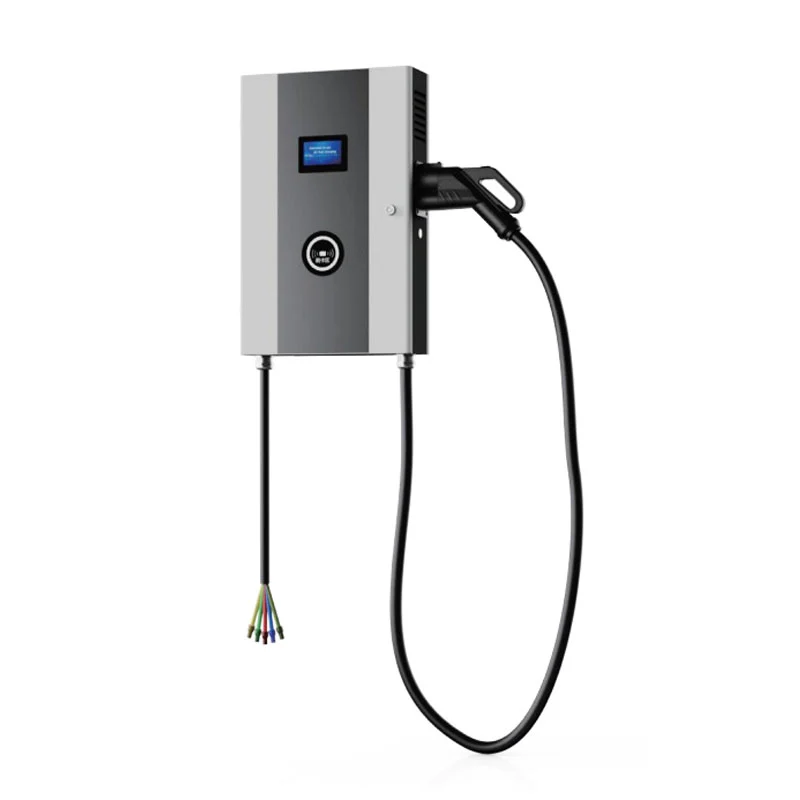

20kW DC wall-mounted EV Charger
Ningbo VanTon mainly supplies kinds of AC/DC charger for EV, this moment, I'd like to commend this 20kW DC wall-mounted EV Charger with lightweight design and durable lifetime, it’s helpful for different locations and situations to satisfy needs. Hope VanTon can be you reliable supplier in China.
20kW DC wall-mounted EV Charger is designed to provide convenient and efficient charging solutions for EV, and equipped with safety features and user-friendly interfaces, so more and more EV owner would like to choose 20kW DC wall-mounted EV Charger
Details
Parameters/specification sheet:
| Name | 20kW DC wall-mounted EV Charger |
| Rated input voltage | DC 200~1000V(rated 1000V) |
| Input current | DC 50A(Three phase) |
| Rated output power | 20kW |
| Charging method | Swipe card charging, button charging |
| Protection functions: | Overvoltage, undervoltage, overcurrent, leakage protection, etc |
| IP Rating | IP54 |
| Charging Port | GB/T 20234.2-2015 |
| Cable Length: | 3 meters (can be customization) |
| Working Environment |
Max.altitude≤2000m; Temperature:-20°C~65°C Decrating work above 50°C |
| Dimension | 439mm*144mm*678mm（length＊width＊height）, |
| Number of charging guns | 1 |
| Human computer interaction | 4.3-inch touch screen |
| Working Temperature | -25°C to 40°C |
| Ralative Humidity | 5%-95% RH (non-condensing) |
| Communication Protocols | OCPP 1.6 / OCPP 2.0 |
| Output Standard | GB/T |
| Design Standard | GB/T 18487.1 |

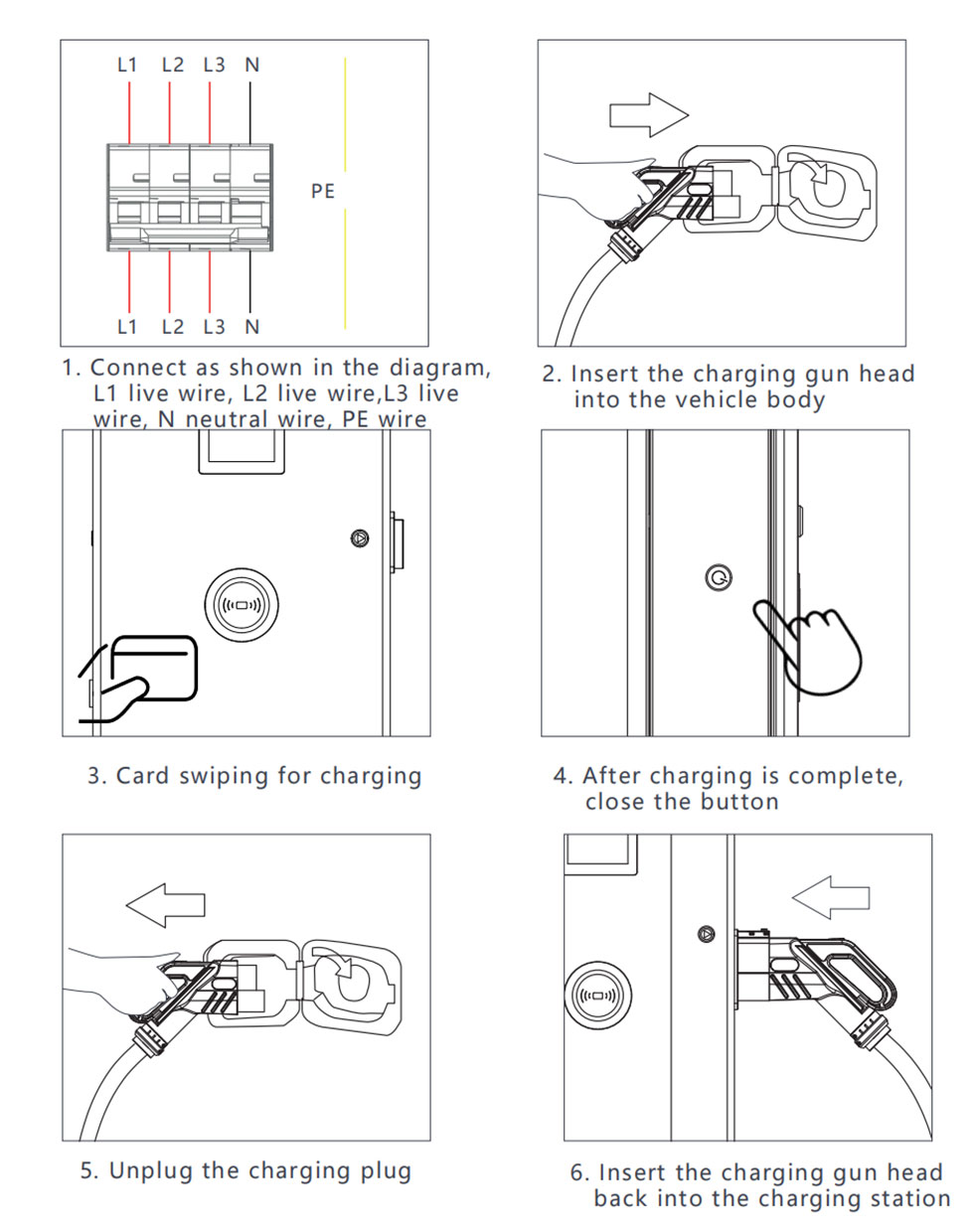

Usage method
For this kind of 20kW DC wall-mounted EV Charger, as experience, list below advantages for reference
Lightweight design
Quick charging
Small size
High efficient
Install simply
Transport easily
Easy use
Durable lifetime
... ...
