30kW DC wall-mounted EV Charger
Ningbo VanTon mainly supplies kinds of AC/DC charger for EV, this moment, I'd like to commend this 30kW DC wall-mounted EV Charger with lightweight design and durable lifetime, it’s really friendly for different locations and situations to match requirements. Hope VanTon have chance to cooperate with you.
30kW DC wall-mounted EV Charger is designed to provide convenient and efficient charging solutions for EV, and equipped with safety features and user-friendly interfaces, so more and more EV owners would like to choose 30kW DC wall-mounted EV Charger
Details
Parameters/specification sheet:
| Name | 30kW DC wall-mounted EV Charger |
| Rated input voltage | DC 200~1000V(rated 1000V) |
| Input current | DC 100A(Three phase) |
| Rated output power | 20kW |
| Charging method | Swipe card charging, button charging |
| Protection functions: | Overvoltage, undervoltage, overcurrent, leakage protection, short circuit, etc |
| IP Rating | IP54 |
| Charging Port | GB/T 20234.2-2015 |
| Cable Length: | 3 meters (can be customization) |
| Working Environment |
Max.altitude≤2000m; Temperature:-20°C~65°C Decrating work above 50°C |
| Dimension | 520mm*208mm*668mm（length＊width＊height）, |
| Number of charging guns | 1 |
| Human computer interaction | 7-inch touch screen |
| Working Temperature | -25°C to 40°C |
| Ralative Humidity | 5%-95% RH (non-condensing) |
| Communication Protocols | OCPP 1.6 |
| Output Standard | GB/T |
| Design Standard | GB/T 18487.1 |

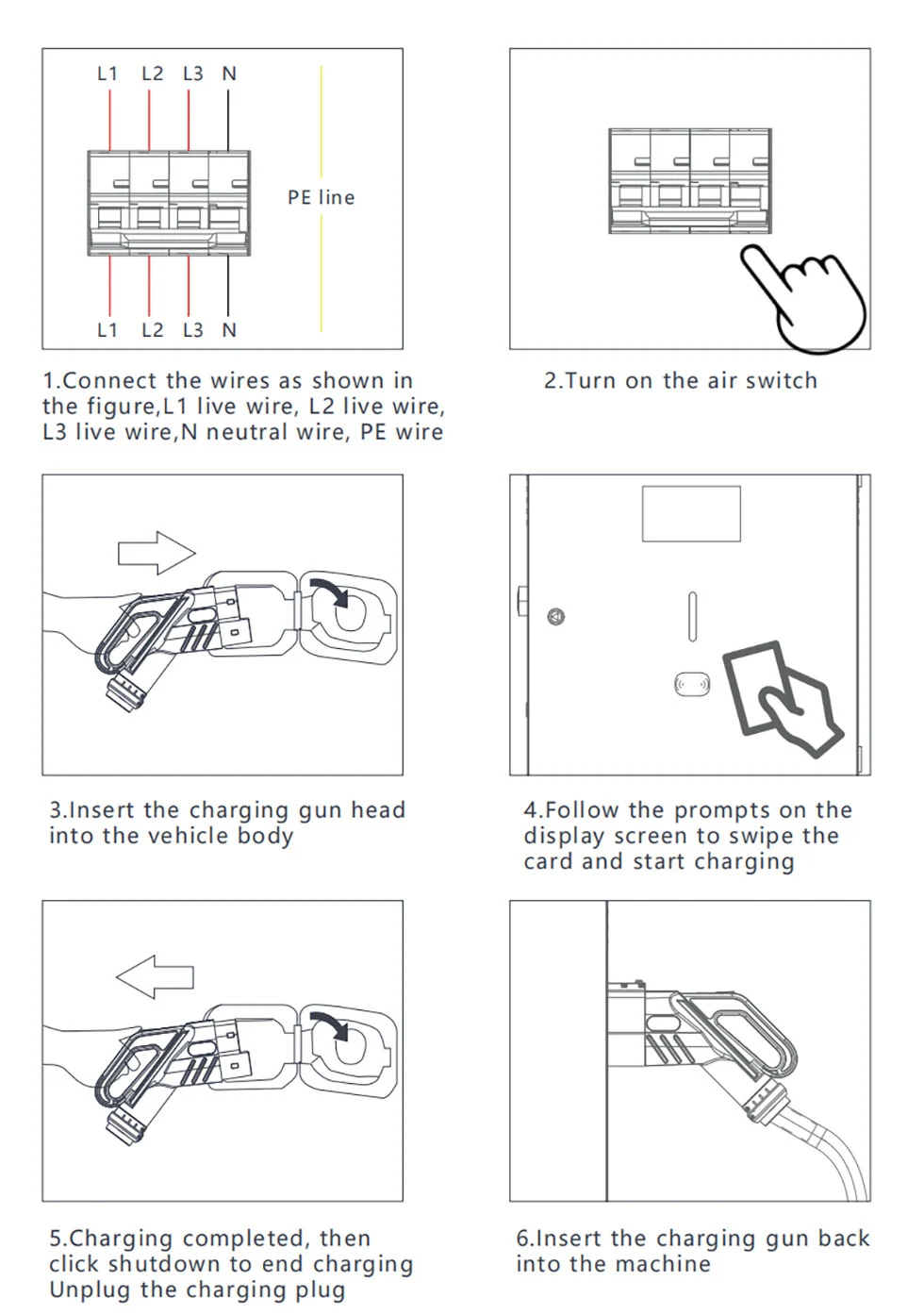

Usage method
For this kind of 30kW DC wall-mounted EV Charger, Kindly plase check listed advantage as below:
Lightweight design
Quick charging
Small size
High efficient
Install simply
Transport easily
Easy use
Durable lifetime
... ...
