22kW AC Charging pile
VanTon can supply 22kW AC Charging pile from reliable manufacturer in China, 22kW AC Charging pile can be with high&low temperature and protection class IP65 to make sure enough lifetime and safety.
22kW AC Charging piles are important EV charging equipment for home using, they have nice design and variety function, also can be used conveniently. Additionally, they are with different power to match kinds of EV, such as 7kW AC Charging piles and 11kW AC Charging piles.

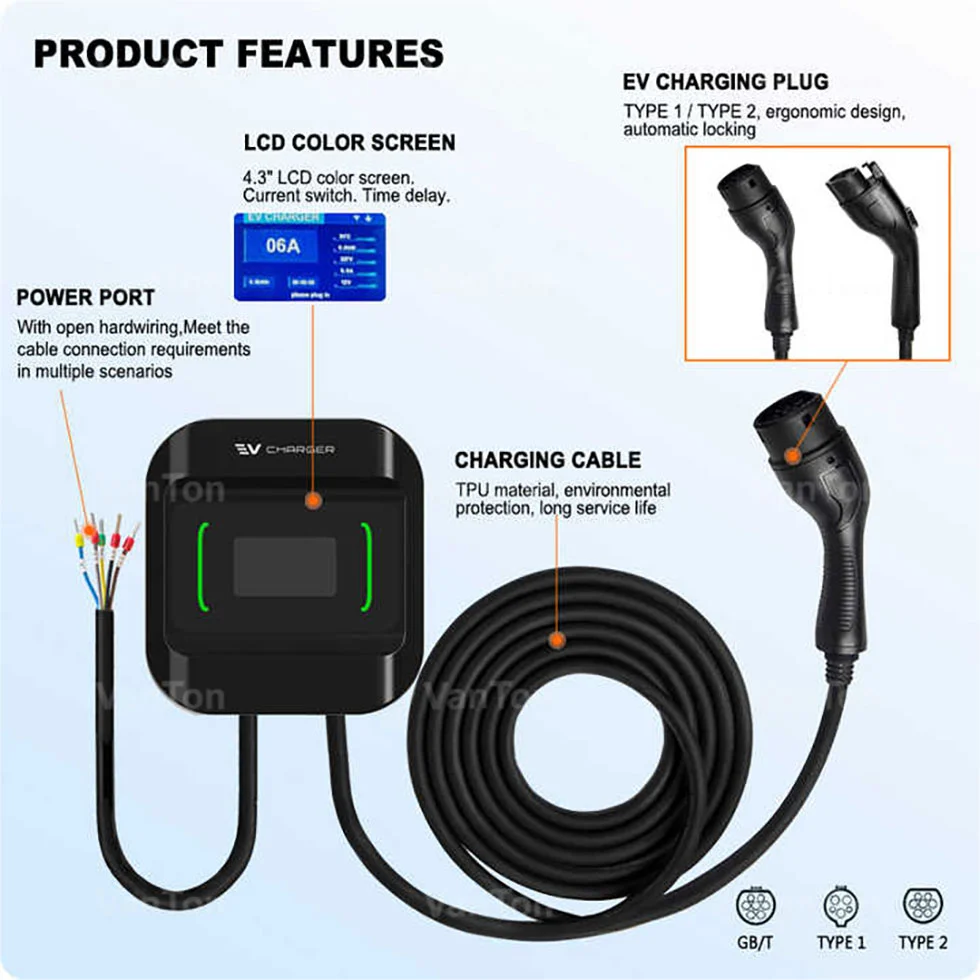

Photos for details
Parameters
| Name | 22kW AC Charging piles |
| Interface standard | GB/T(Type2, Type1 and NACS) |
| Output current | 32A |
| Output power | 22kW |
| Input Voltage | 380V |
| Rated current | 32A AC |
| Voltage | 480V AC |
| Start mode | Card swipe/APP/Plug&play |
| Protection level | IP65/TYPE 6 |
| Product feature |
Leakage protection: 30mA AC+6mA DC/CCID20, 5.3” LCD color screen.Current switch, Time delay |
| Material | PC+Copper |

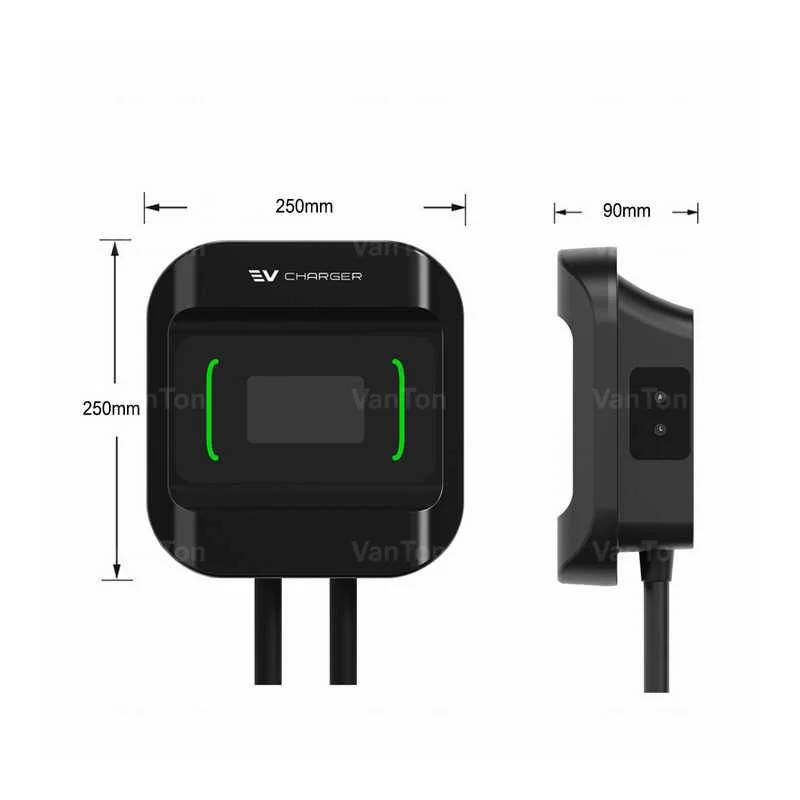

| Control ox size | 25(L)*25(W)*9(H)(cm) |
| Single gross weight | 5kg |
FAQ
Q: What types of EV chargers are available?
A: There are three main types of EV chargers: level 1, level 2, and level 3. Level 1 chargers use a standard 120-volt outlet and are the slowest type of charger, while level 2 chargers use a 240-volt outlet and are faster. Level 3 chargers, also known as DC fast chargers, are the fastest type of charger and are typically found at public charging stations.
Q: How long does it take to charge an electric vehicle with an EV charger?
A: The charging time depends on the type of EV charger and the capacity of the vehicle's battery. A level 1 charger can take up to 20 hours to fully charge a vehicle, while a level 2 charger can take between 4 and 8 hours. Level 3 chargers can charge a vehicle up to 80% in just 30 minutes.
Q: Can I install an EV charger at home?
A: Yes, you can install an EV charger at home as long as you have a dedicated circuit and a compatible outlet. It's recommended to hire a licensed electrician to install the charger to ensure it's done safely and correctly.
