​What Specifications Make VanTon 180KW DC EV Fast Charger Ideal For Commercial Charging Stations?

Commercial charging operators need stable, multi-vehicle compatible DC fast chargers to cut waiting time and raise operational income. VanTon 180KW DC EV Fast Charger Floor-mounted Charging Station is a dual-gun floor standing unit, supporting adjustable 120/160/180kW power output and mainstream EV charging protocols including CCS, NACS, GB/T.

1. Basic Overview of 180KW DC EV Fast Charger Floor-mounted Charging Station

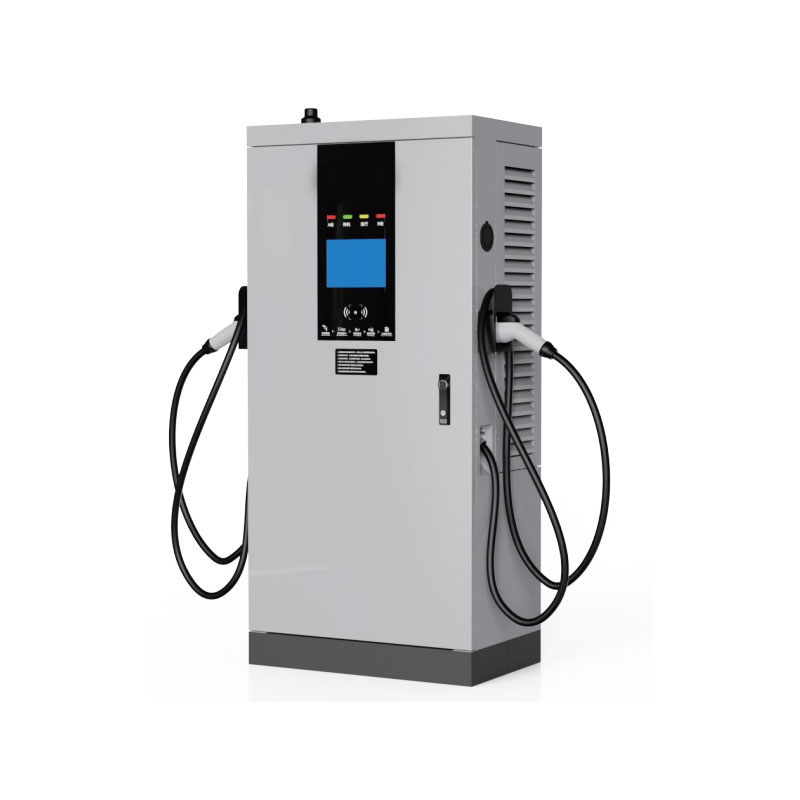

VanTon 180KW DC EV Fast Charger Floor-mounted Charging Station is a floor standing dual-gun DC fast charging device developed by Ningbo Vanton EV Charger Co., Ltd. The same production mold supports 120kW, 160kW and 180kW power versions. Equipped with a 7-inch touch screen, it supports RFID card and APP two charging modes, and integrates 16 kinds of built-in safety protection functions. The whole machine reaches IP54 waterproof and dustproof grade, suitable for outdoor long-term operation. It matches all mainstream global EV charging interfaces, and customizable cable length, cabinet color and communication modes meet the demands of commercial charging stations, highway service areas and corporate fleet lots.

2. Full Technical Parameter Table

3 Mandatory Installation Space Requirements

To guarantee heat dissipation, door opening and daily maintenance, reserved clearance around the charger must follow below rules:

1. Front side: ≥1000mm for door opening & charging operation

2. Left & Right sides: ≥100mm each for air intake/outlet ventilation

3. Rear side: ≥300mm for wiring overhaul

4. Top space: ≥300mm for lifting and component replacement

Machine body overall size: 750mm(L) × 456mm(W) × 1600mm(H)

4. Core Product Functions

1. Dual gun simultaneous charging, improve station throughput

2. Dual operation modes: RFID card swipe + mobile APP remote control

3. Wide voltage compatibility fits most regional power grids

4. Modular internal structure for easy component replacement

5. Outdoor IP54 shell adapts rainy, dusty open-air sites

Full Safety Protection Functions

• Input: Overvoltage, undervoltage, phase loss, short-circuit protection

• Output: Overvoltage, overcurrent, reverse connection, short-circuit protection

• Environmental & hardware: Leakage, lightning, grounding, over-temperature protection

• Extra: Contractor adhesion, insulation detection anti-fault functions

5. Multi-Scenario Application Range

• Highway service area public charging stations

• Shopping mall & community parking lots

• Enterprise fleet & logistics vehicle depots

• Car dealership exhibition lots

• Hotel, scenic spot commercial charging zones

• Municipal public new energy charging hubs

6. VanTon Factory Manufacturing & Qualification Strength

Ningbo Vanton EV Charger Co., Ltd. owns 12 years of EV charging equipment production experience:

1. Factory Scale: 50,000㎡ production plant, mature mold workshop, CNC stamping and assembly lines

2. Annual Capacity: 100,000 sets of charging piles; 2 million charging connectors per year

3. Certifications: IATF16949, ISO9001, ISO14001, ISO45001, SA8000; products pass CCC, UL, TUV, CE, SAA, PSE

4. R&D Strength: Industry-leading high-power & wireless charging lab with TUV Intertek recognized testing qualification

5. Market Layout: Products exported to 58 countries; long-term supply for Tesla, BYD, NIO, Volvo, Renault and other mainstream auto brands

6. Global Service: Independent after-sales service outlets in Canada and other overseas regions

7. Complete Pre-Sales, In-Sales & After-Sales Service

Pre-Sales

1. Free project scheme design according to site power and space conditions

2. Provide complete parameter sheets and certification documents

3. Support factory video inspection and sample testing

In-Sales

1. Customize cabinet color, cable length and communication modules

2. Real-time production photo/video tracking during manufacturing

3. Flexible MOQ, support small trial orders

After-Sales

1. Standard 2-year full machine warranty (industry average is 1 year)

2. Overseas local after-sales points for rapid on-site maintenance

3. Lifelong supply of original spare parts at cost price

4. Remote online technical guidance for installation & troubleshooting

8. Customer FAQ

Q1 What power options does VanTon floor DC fast charger have?

A The same cabinet mold supports 120kW, 160kW and 180kW adjustable output power to match different site power capacity.

Q2 What EV charging standards can this 180KW DC EV Fast Charger match?

A It supports GB/T, CCS, CHAdeMO and NACS four mainstream global charging gun interfaces.

Q3 How long is the official warranty period?

A We offer 2-year whole machine warranty, longer than the standard 1-year warranty of most manufacturers.

Q4 Can I customize cabinet color and cable length?

A Yes, gray/white cabinet optional; standard 5m cables can be lengthened as required.

Q5 What communication protocols does it support for charging station management systems?

Dual OCPP 1.6 and OCPP 2.0 versions, with optional 4G, Bluetooth and Ethernet connection modes.

Q6 Is the charger suitable for outdoor year-round use?

A The whole machine reaches IP54 dustproof and waterproof grade, stable within -20℃ to 50℃ outdoor environment.

Summary

VanTon 180KW DC EV Fast Charger Floor-mounted Charging Station integrates dual-gun high power output, comprehensive safety protection and multi-protocol compatibility, which is a stable cost-effective choice for all kinds of commercial charging projects. Backed by 12 years of professional charging pile manufacturing, complete international certifications and global after-sales network, VanTon can provide standardized finished products and personalized customized solutions for charging station investors and engineering partners. If you need detailed parameter quotations, installation layout drawings or sample evaluation arrangements, please feel free to contact us. Our professional new energy technical sales team will provide targeted charging equipment matching solutions for your project.
