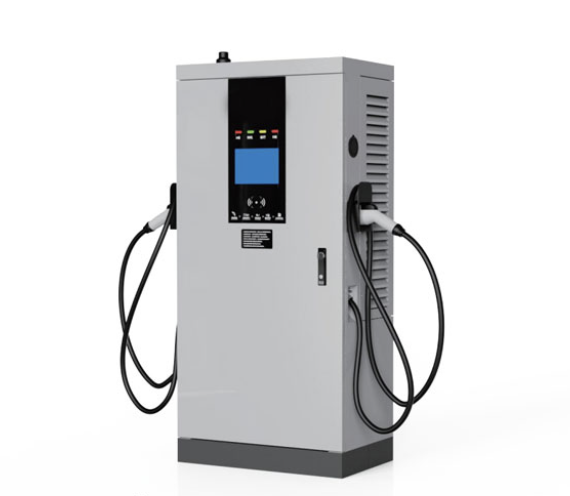

IP54 Fast EV Charger Floor-mounted Charging Station for Electric Car

Product Features

1. IP54 Fast EV Charger Floor-mounted Charging Station for Electric Car has High power output up to 180 kW with selectable 120/160/180 kW configurations to match site demand and grid capacity.

2. Dual‑gun design with dynamic power sharing, allowing two vehicles to charge simultaneously with optimized load distribution.

3. Wide voltage range (200–1000 V DC) supports passenger cars, vans, and commercial fleets using 400‑V and 800‑V battery architectures.

4. Multiple communication interfaces (4G, Ethernet, Bluetooth) and OCPP 1.6/2.0 enable remote monitoring, smart billing, and grid integration.

5. Comprehensive safety protections: over/under voltage, overcurrent, short‑circuit, leakage, surge, over‑temperature, grounding, and insulation monitoring.

6. IP54‑rated enclosure and operating temperature from -30 °C to +55 °C ensure dependable performance in rain, dust, and extreme climates.

7. Modular design simplifies maintenance, and the optional after‑sales service point in Canada guarantees rapid technical support.

Applications

Public charging hubs along highways and urban corridors requiring high‑turnover fast charging.

Commercial parking lots at shopping malls, hotels, and office buildings to attract EV‑driving customers.

Fleet depots for logistics, taxi, and ride‑hailing companies needing overnight or opportunity charging.

Retail and hospitality venues offering EV charging as an amenity to increase dwell time and customer loyalty.

Installation Space Requirements Calculation

Device dimensions: 750 mm (L) × 456 mm (W) × 1600 mm (H). Minimum clearances for safe operation and maintenance:

Front side: ≥1000 mm for door access and regular operations.

Left side: ≥1000 mm for side door opening and outlet airflow.

Right side: ≥1000 mm for side door opening and inlet airflow.

Rear side: ≥300 mm for cable connections and grounding.

Top side: ≥300 mm for lifting and overhead maintenance.

How is the Charging Performance?

The IP54 Fast EV Charger Floor-mounted Charging Station for Electric Car delivers up to 180 kW continuous DC power, with a maximum input current of 348 A at 380 Vac. Its wide output (200–1000 V) covers both 400‑V and 800‑V systems, enabling an 80 % charge in approximately 20–40 minutes for typical EVs. Integrated active power‑factor correction and high‑efficiency conversion modules minimise energy loss, reducing operating costs for site owners.

Why Choose VanTon?

1. Over 12 years of dedicated EV charging manufacturing, with proven quality and reliability.

2. Full certifications: CE, TUV, UL, CCC, SAA, PSE, and more, ensuring global compliance.

3. In‑house R&D and production lines across a 50,000 m² facility, with annual capacity of 2 million connection devices.

4. Customization options for colours, cable lengths, and power configurations to meet specific project requirements.

5. Competitive pricing and low MOQ (1 piece) with fast delivery, backed by a dedicated after‑sales team including a service point in Canada.

FAQ

Q: Can this charger charge two EVs at the same time?
A: Yes, the dual guns support simultaneous charging with dynamic power sharing—when two vehicles are connected, the system intelligently adjusts output to each based on battery state and demand.

Q: What are the installation requirements?
A: It requires a concrete foundation and a dedicated 380‑Vac, three‑phase grid connection. Follow the clearance specifications listed above, and always use a certified electrician for installation.

Q: Can it operate in freezing weather?
A: Yes, the charger operates reliably from -30 °C to +55 °C (with derating above 50 °C). Internal thermal management ensures stable performance even in cold climates.

Q: What payment and access methods are supported?
A: The 7‑inch touchscreen supports RFID cards, mobile app QR codes, and credit card payments (with optional terminal). It also fully supports OCPP for integration with backend billing systems.
