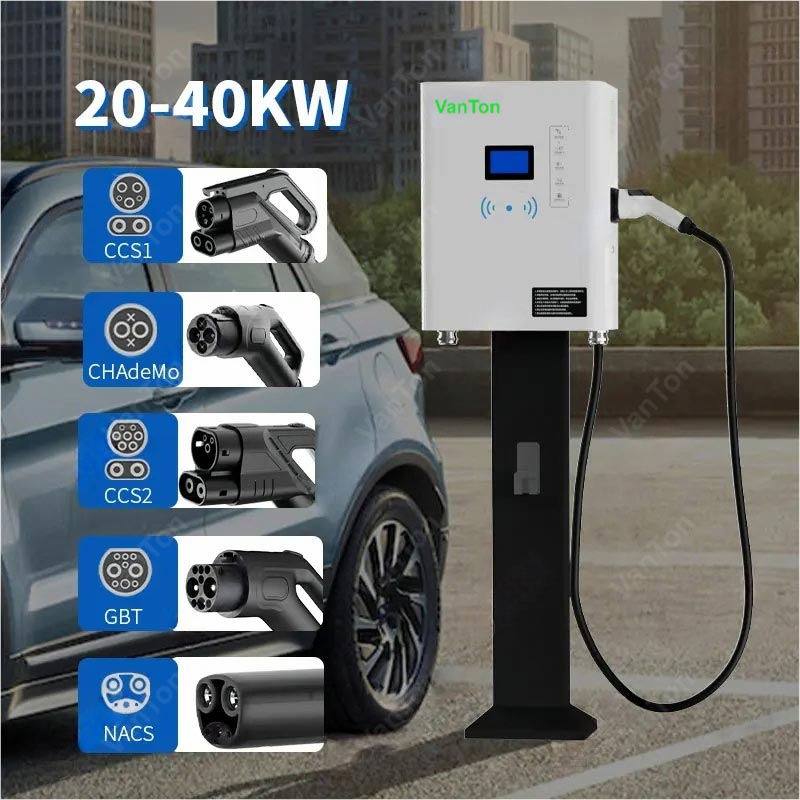

40KW IP54 Wall-mounted Type DC EV Fast Charging Pile with Single Gun

The VanTon 40KW IP54 Wall-mounted Type DC EV Fast Charging Pile with Single Gun is a space‑saving DC fast charger that converts AC to DC directly, bypassing the vehicle’s onboard charger. With a wide output voltage range from 200–1000 V DC, it supports nearly all passenger EV models. The single‑gun design ensures dedicated full power delivery, while the IP54 enclosure and wall‑mountable bracket enable quick, flexible installation without heavy civil works.

Key Features

Lightweight design: This 40KW IP54 Wall-mounted Type DC EV Fast Charging Pile with Single Gun has compact dimensions and reduced weight simplify handling, mounting, and structural support requirements.

Quick charging: It delivers up to 40 kW continuous DC power, typically adding 80–120 km of range per 30 minutes for a standard EV.

Small footprint: Wall‑mounted configuration saves valuable floor space, ideal for tight urban parking or indoor garages.

High efficiency: Advanced power modules achieve >95 % conversion efficiency, lowering energy costs and heat dissipation.

Install simply:The 40KW Wall-mounted Type Single Gun DC Fast Charger for Electric Vehicle includes a dedicated mounting plate with clear alignment marks; connects to standard 3‑phase 380 Vac supply without complex foundation works.

Transport easily: The unit’s compact size and integrated cable management allow safe, cost‑effective shipping and on‑site manoeuvring.

Specification Sheet

Applications

1. Workplace charging for employees during office hours, enabling top‑up without detours.

2. Residential complexes and apartment parking garages where space and grid upgrades are limited.

3. Retail and hospitality venues offering customer charging as an amenity with modest power demand.

4. Fleet depots for light commercial vehicles, vans, and delivery EVs that can charge overnight or during loading periods.

5. Remote or temporary sites where a portable, wall‑mounted fast charger is needed for field operations.

What daily life scenarios can a 40kW car charger satisfy?

1. Daily commuting & office charging (several hours)

Yes, 40 kW fully replenishes most EVs within 2–4 hours, perfectly matching workday parking durations.

2. Highway road trips requiring plug‑and‑go stops

Higher power (≥120 kW) is more suitable for minimising en‑route stops, but 40 kW remains adequate for regional travel or overnight hotel stays.

3. Grid‑constrained sites

The 40 kW unit requires significantly lower input current (approx. 65 A at 380 Vac), often avoiding costly transformer or panel upgrades.

4. Mixed‑use locations

For destination charging (shopping, dining, fitness), 40 kW provides a meaningful top‑up within 1–2 hours, meeting typical dwell time needs.

Charging Compatibility

The 40KW IP54 Wall-mounted Type DC EV Fast Charging Pile with Single Gun supports an ultra‑wide 200–1000 V DC output, covering 400‑V and 800‑V architectures. It is compatible with over 99 % of current EVs, including Tesla, Volkswagen, BMW, Hyundai, Kia, NIO, BYD, and more. The charging interface can be factory‑configured to CCS1, CCS2, GB/T, or CHAdeMO, and the single gun delivers full power without any splitting, ensuring each session receives maximum available output.

Why Choose VanTon

1. Over 12 years of focused EVSE manufacturing with a proven track record in quality and reliability.

2. Full international certifications – CE, TUV, UL, SAA, PSE, CCC – ensuring compliance and safety globally.

3. In‑house R&D and production across a 50,000 m² facility, with strict IATF 16949 and ISO 9001 quality management systems.

4. Flexible customisation – optional cable lengths, connector types, and colour finishes to match project specifications.

5. Low MOQ and rapid delivery, backed by dedicated after‑sales support including a service point in Canada for North American clients.
