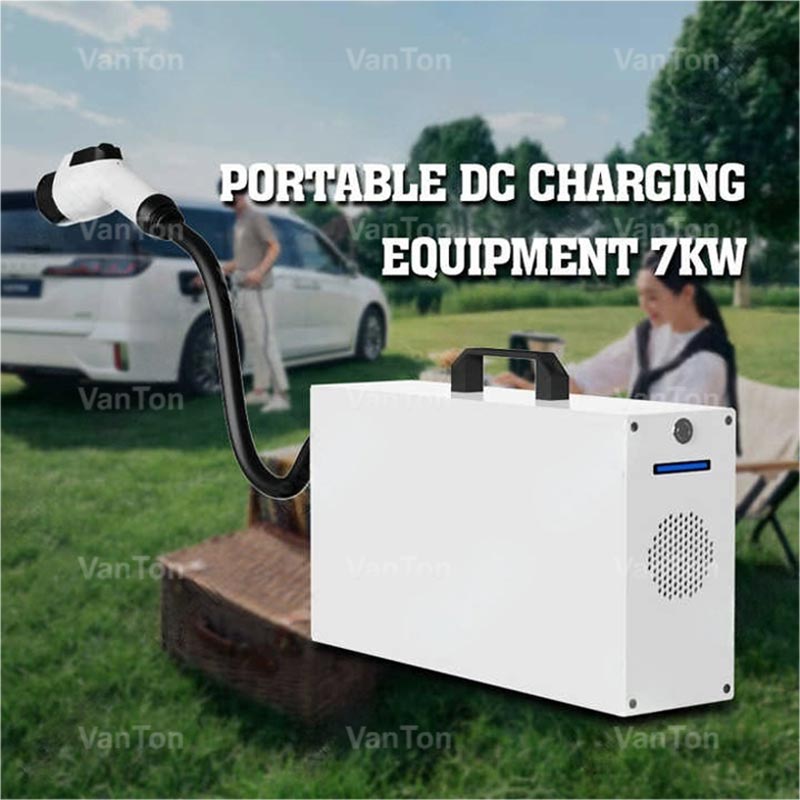

7KW Water-proof Compact Portable DC Charging Station for Electric Vehicle

The VanTon 7KW Water-proof Compact Portable DC Charging Station for Electric Vehicle is a self‑contained portable power supply that converts single‑phase AC to regulated DC output, bypassing the onboard charger entirely. With OCPP 1.6/2.0 communication, multiple connector options including CCS, GB/T, CHAdeMO, and full protective features, this 7KW Portable DC Fast Charger for Electric Vehicle brings fast charging capability to homes, workshops, and remote locations without any fixed installation.

Product Functions

Direct DC output: the 7KW Water-proof Compact Portable DC Charging Station for Electric Vehicle delivers clean DC power directly to the battery, eliminating conversion losses and heat generation inside the car.

Universal input acceptance: works with both 120 V (North America) and 220‑240 V (Europe/Asia) supplies at 16 A or 32 A, without any manual adjustment.

Smart connectivity: built‑in 4G (optional) and Ethernet with OCPP 1.6/2.0 support enable remote start/stop, billing integration, and over‑the‑air updates.

Multi‑standard readiness: available with CCS1, CCS2, GB/T, or CHAdeMO plugs; the standard 3‑meter cable can be customised to your preference.

Real‑time status feedback: LED indicators and an optional LCD screen show voltage, current, power, and fault codes for easy troubleshooting.

Safety & Reliability Protection

1. Comprehensive electrical protections include overvoltage, undervoltage, overcurrent, short‑circuit, leakage, grounding, over‑temperature, anti‑reverse, surge (lightning) protection, and insulation monitoring. The charger automatically shuts off if insulation resistance drops below safe levels.

2. IP54 water‑resistant rating protects against dust ingress and splashing water from any direction, allowing safe operation in damp outdoor conditions (not for submersion or heavy rain).

3. An emergency stop button provides instant manual cut‑off in case of any abnormality during charging.

4. Internal temperature sensors and active cooling ensure stable operation within ‑20 °C to 50 °C ambient, with automatic derating or shutdown at temperature extremes.

5. Impact‑resistant housing and strain‑relief cable glands protect internal components from vibration and accidental pulls.

Portable Design

The 7KW Water-proof Compact Portable DC Charging Station for Electric Vehicle offers true plug‑and‑play operation with no electrician, wall mounting, or concrete foundation required; simply connect it to any grounded socket and start charging immediately. Its compact dimensions of 475×120×304 mm and weight under 10 kg make it easy to store in the vehicle boot and carry by one person, while the integrated carrying handle ensures convenient transport between home, office, and remote sites. The detachable charging cable can be unplugged for storage or replacement, reducing wear and tear during transit, and the entire setup from unpacking to charging takes less than two minutes, with clear visual indicators guiding each step.

Precautions for Use

1. Ensure the input socket has reliable grounding. Do not use ungrounded extension cords or adapters.

2. Avoid using the unit in heavy rain, snow, or standing water. IP54 protects against splashes, not submersion.

3. Keep the device away from flammable, explosive, or corrosive materials, and maintain sufficient airflow around the cooling vents.

4. Do not operate near strong electromagnetic interference sources, such as large motors or welding equipment, which may affect control circuits.

5. Periodically inspect internal terminal connections for tightness and cable insulation for wear. Recommended every 6 months for heavy‑use units.

Authoritative Certifications

CE (Europe): complies with LVD and EMC directives for electrical safety and electromagnetic compatibility.

TUV Rheinland: certified for product safety and performance under stringent German testing standards.

UL (USA): meets US safety requirements for electrical equipment (available on request for relevant models).

SAA (Australia): approved for Australian/New Zealand electrical safety standards.

PSE (Japan): complies with Japanese DENAN law for electrical products.

CCC (China): mandatory China Compulsory Certification for domestic market access.

BS (UK): meets British Standards for plug and socket safety (where applicable).

FAQ

Q: Can this charger be used in rainy weather?
A: The IP54 rating allows protection against splashing water, so light rain is fine. However, do not use in heavy downpours or where water pooling may occur, and always protect the AC plug from moisture.

Q: How long does it take to charge a typical EV?
A: With 7 kW output, the 7KW Water-proof Compact Portable DC Charging Station for Electric Vehicle adds approximately 40‑50 km of range per hour. A full 60 kWh battery would take about 8‑9 hours, ideal for overnight or workplace charging.

Q: Does it work with all electric car models?
A: Yes, the output voltage range of 200‑1000 V DC covers both 400‑V and 800‑V systems. With interchangeable CCS, GB/T, or CHAdeMO plugs, it is compatible with over 99 % of current EVs, including Tesla, Volkswagen, BMW, NIO, BYD, and more.

Parameter Sheet

Operating Instructions

1. Connect the input power

Plug the AC input plug into a grounded mains socket. Ensure a firm and secure connection.

2. Connect the charging gun

Align the charging gun head with the vehicle’s charging inlet, push it in firmly until the locking mechanism clicks into place. Verify that the connection is secure.

3. Start the charger

Press the power switch on the machine panel. The display (or indicator light) will turn on, the system will perform a self‑check, and automatically identify the vehicle protocol.

4. Begin charging

Once the display shows “Standby” or “Ready to charge”, the unit will start charging automatically (if manual start is required, press the “Start” button).

5. End charging

After charging is complete, tap the “Shut Down” button (or “Stop”) on the screen. The system will stop output and end the charging process.

6. Disconnect

First, unplug the charging gun head (press the release button before pulling it out),

Then, unplug the input power cord and neatly store the cables.

Packaging Information

Box dimensions

Length: 52.5 cm

Width: 27.0 cm

Height: 35.4 cm

Weight

Gross weight (including main unit, cables, and standard accessories): approx. 20 kg

Packaging material

High‑strength double‑wall corrugated cardboard box, with shock‑absorbing inner padding (e.g., expanded polyethylene or eco‑friendly pulp moulding) to effectively protect the product during transit.

Contents of the box

Charging main unit × 1

Charging gun cable × 1

Input power cord × 1

User manual / Certificate of conformity × 1
